DNC Series Commercial Ozone Generator

Short Description:

DNC Series Ventilation Exhaust Ozone Generator The DNC series of Ozone Generators is designed to deliver an effective Odour Control and oil Reduction solution for Commercial and Industrial Kitchen Extract Canopies and Ductwork Systems. FEATURES: 1.Corona discharge long lifespan ceramic plate,10,000 working hours 2.Adjustable ozone output,0-100%.0-999 hours digital timer 3.Stainless steel 304 casing; 4.Ambient air source, built-in cooling fan 5.High ozone concentration and ozone output, far ...


Product Detail

Product Tags

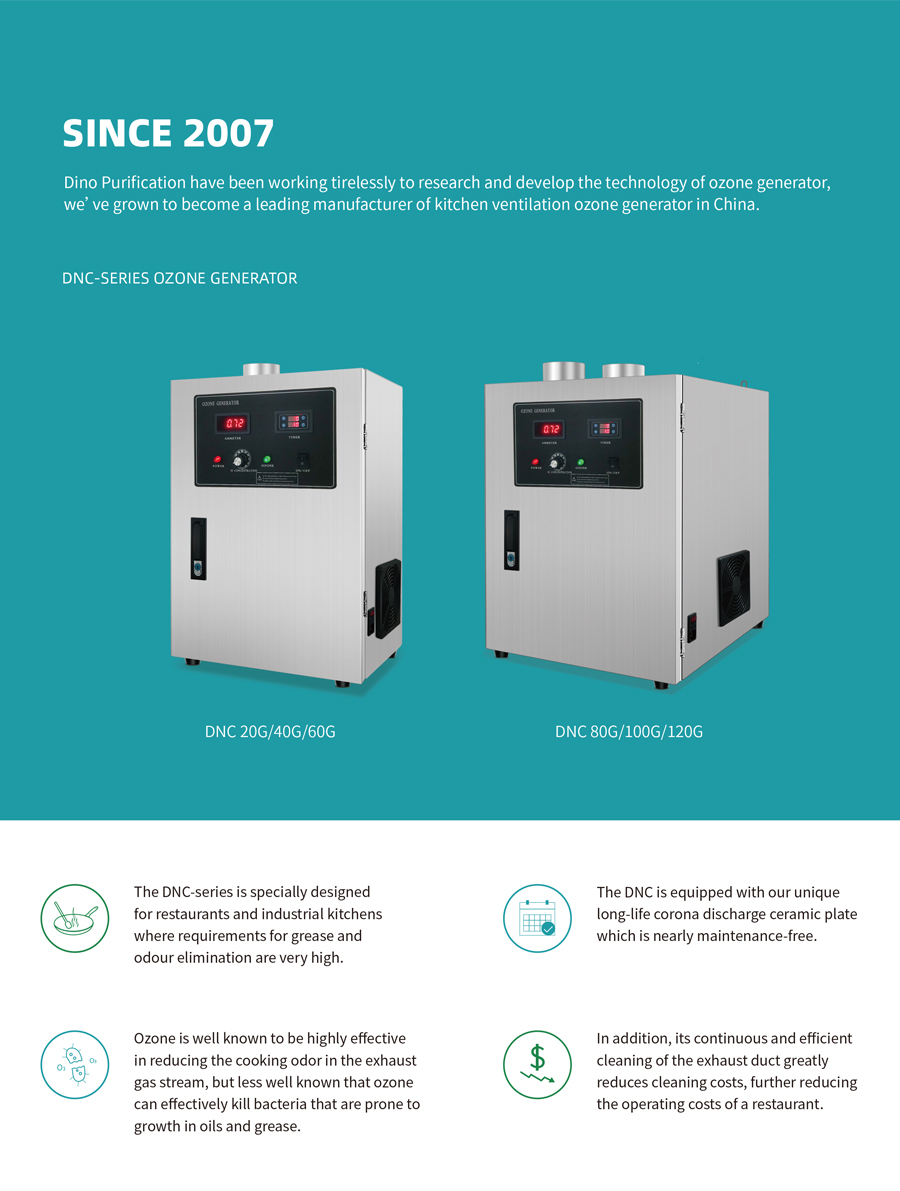

DNC Series Ventilation Exhaust Ozone Generator

The DNC series of Ozone Generators is designed to deliver an effective Odour Control and oil Reduction solution for Commercial and Industrial Kitchen Extract Canopies and Ductwork Systems.

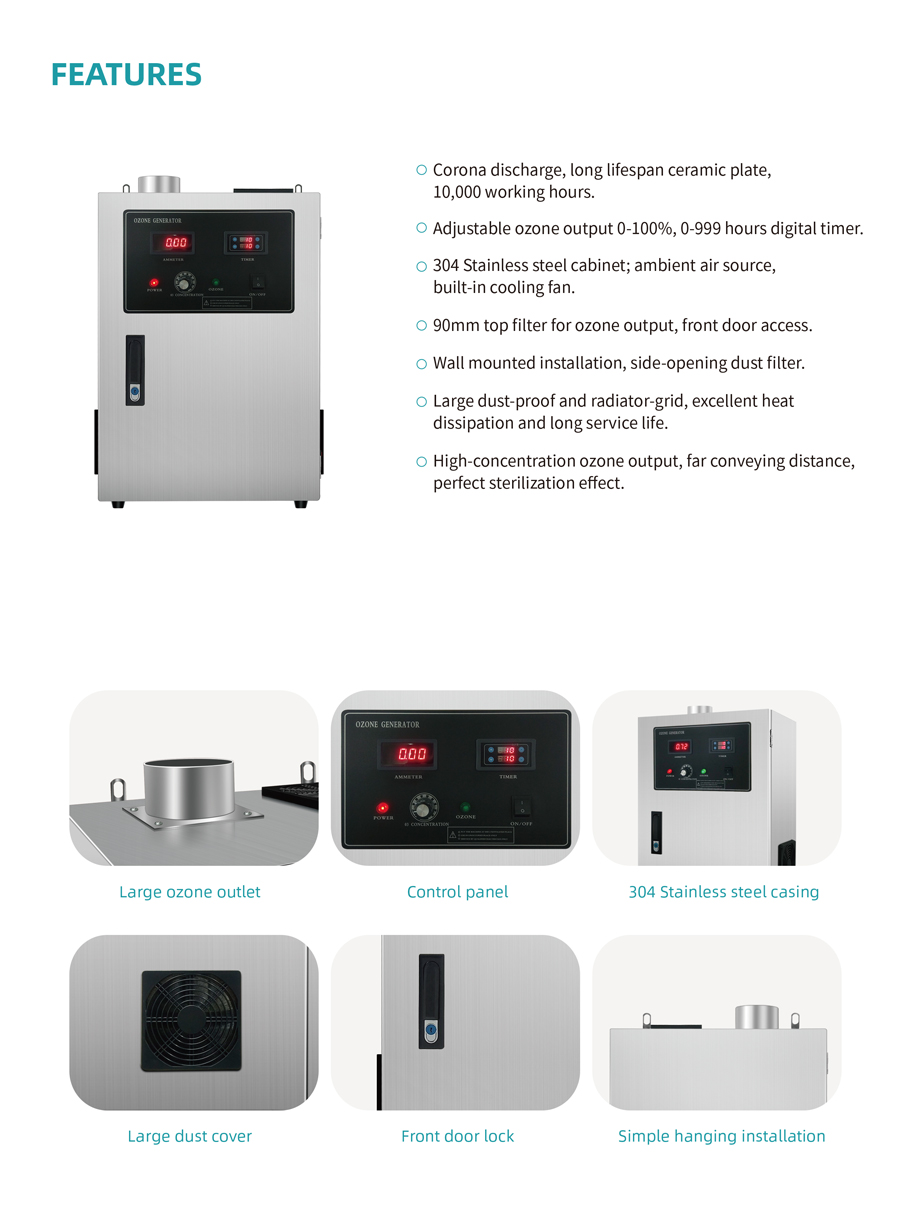

FEATURES:

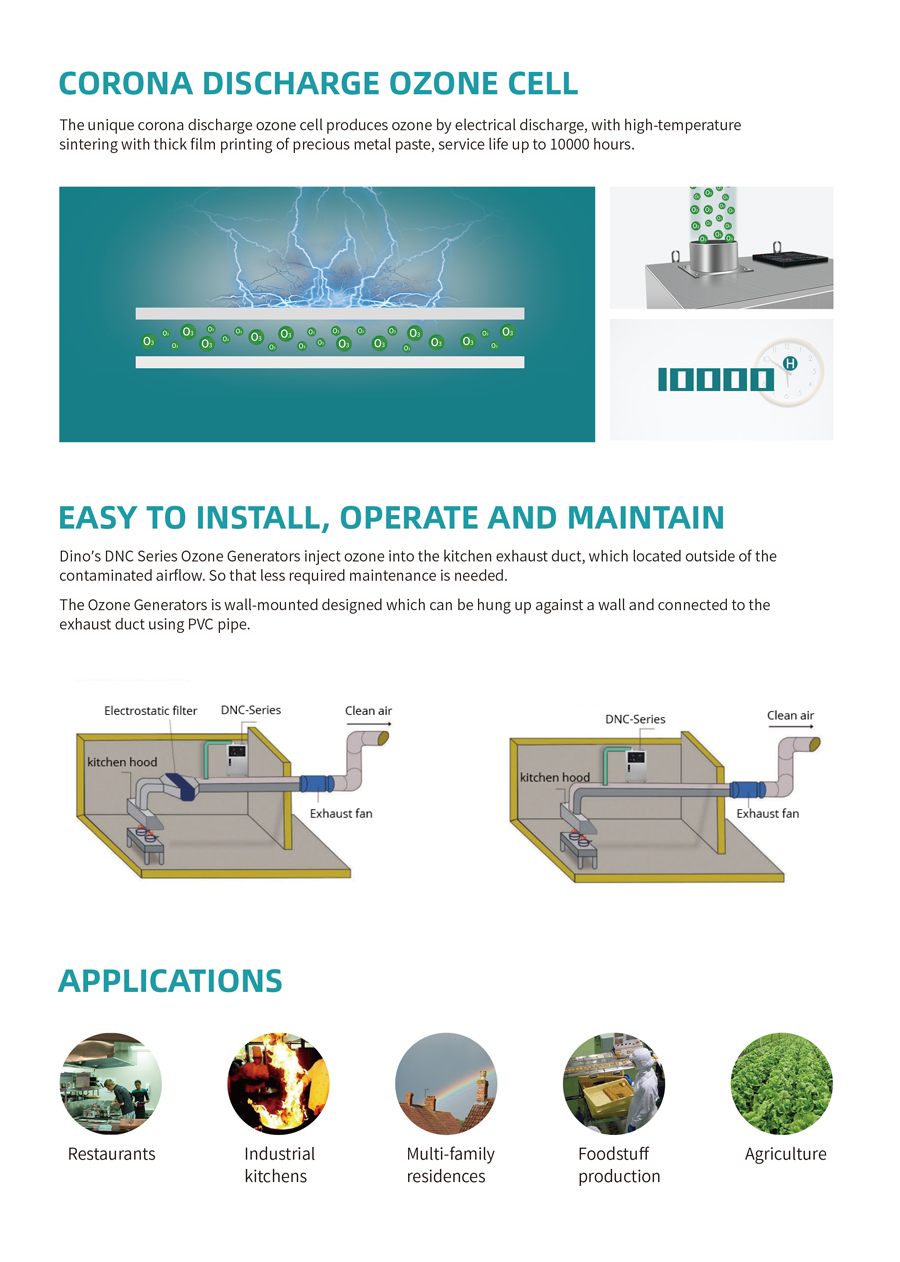

1.Corona discharge long lifespan ceramic plate,10,000 working hours

2.Adjustable ozone output,0-100%.0-999 hours digital timer

3.Stainless steel 304 casing;

4.Ambient air source, built-in cooling fan

5.High ozone concentration and ozone output, far conveying distance, perfect sterilization effect

6.Large dust-proof and radiator-grid, with excellent heat dissipation and long life

7.Lags welded for installation against wall, side opening dust filter

8.90mm tube filter on top for ozone output

9.Working time counting(optional), front door access

APPLICATIONS:

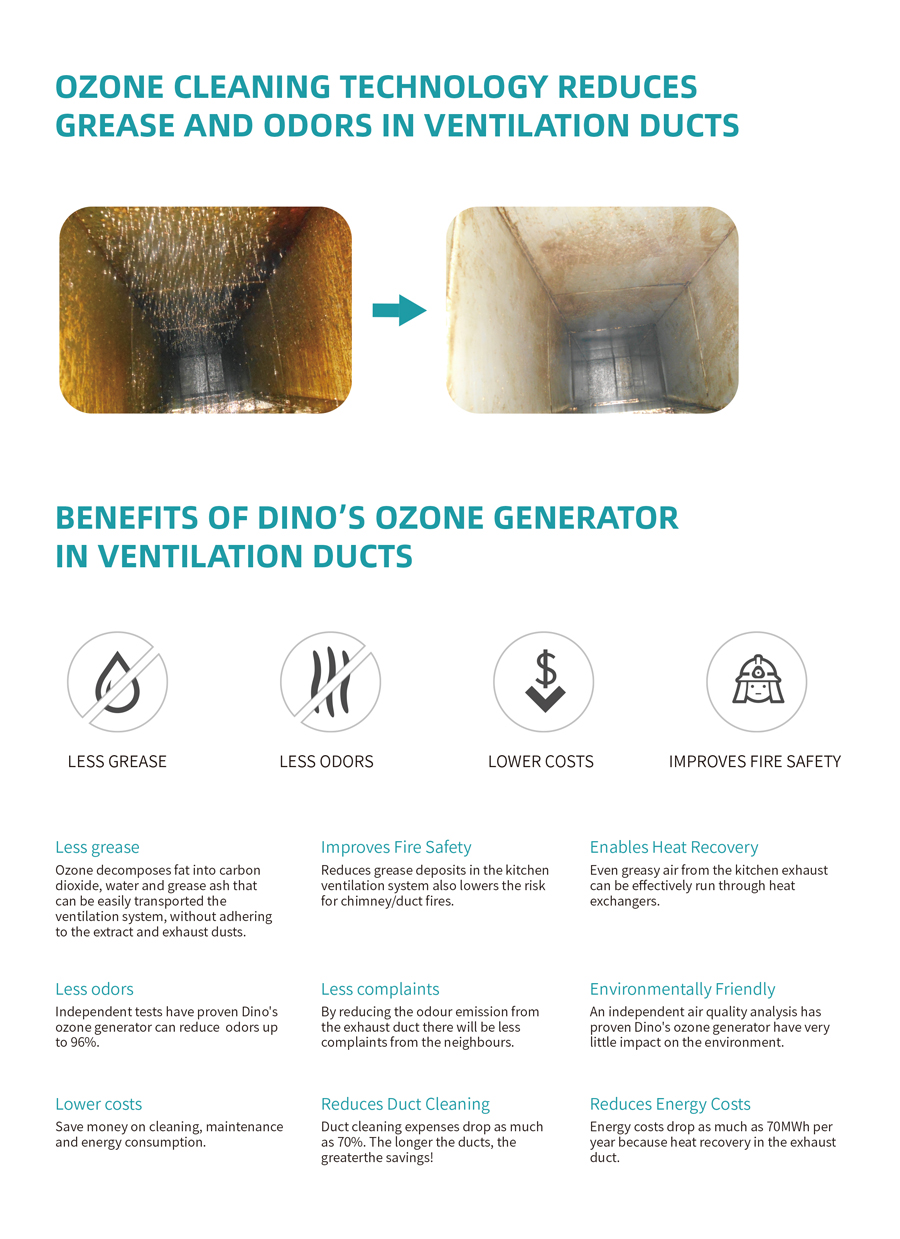

Air purifier and sterilizer; eliminate mold, odor and smoke; poultry farming, vegetable greenhouse, mushroom cultivation, industry space disinfection, exhaust fumes treatment, commercial kitchen exhaust duct removing oil and odor, garage rooms, seafood storage area, fresh food stores, sewage ventilation

SPECIFICATIONS:

Item

Unit

DNC-20G

DNC-40G

DNC-60G

DNC-80G

DNC-100G

DNC-120G

Ozone output

G/Hr

20

40

60

80

100

120

Power

W

280

300

350

600

700

740

Voltage

V/Hz

AC  220-240/50-60;110/60

O3 concentration

ppm

45

75

125

75*2

75 & 125

125*2

Dimension

cm

40*32*55

45*50*55

Unit weight

Kg

18

18.5

19

28

30

31

Treated air flow

CMH

7000

10000

15000

20000

25000

30000

Ozone outlet

mm

90*Single outlet

90* two outlets

Working temperature

20-40
