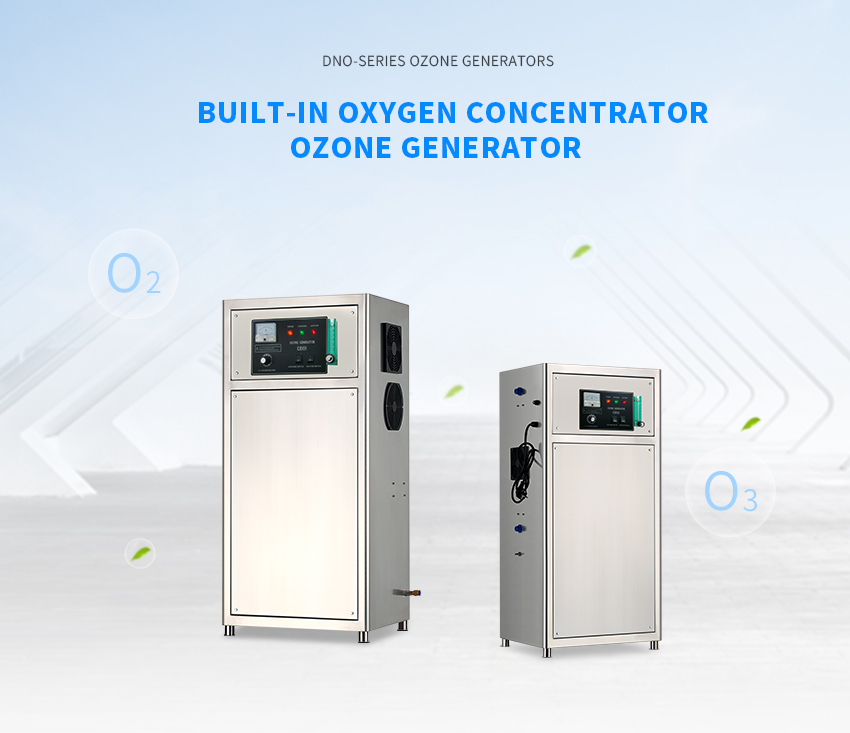

10G-100G/Hr Built-in Oxygen Feeding Ozone Generator

Short Description:

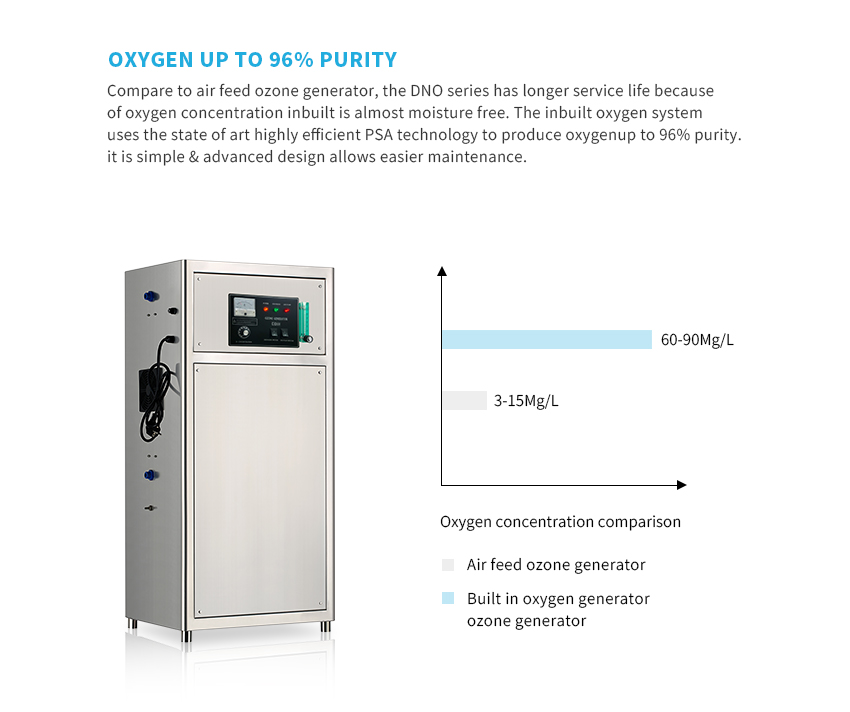

DNO series products use corona discharge technology with quartz glass ozone cell to produce ozone gas, which is extremely stable, long lifespan, high discharge efficiency. Come with built-in oxygen concentrator and air compressor, it is a turnkey solution which could produce either ozone or oxygen gas from ambient air source.

Send email to us Download as PDF

Product Detail

Product Tags

FEATTURES

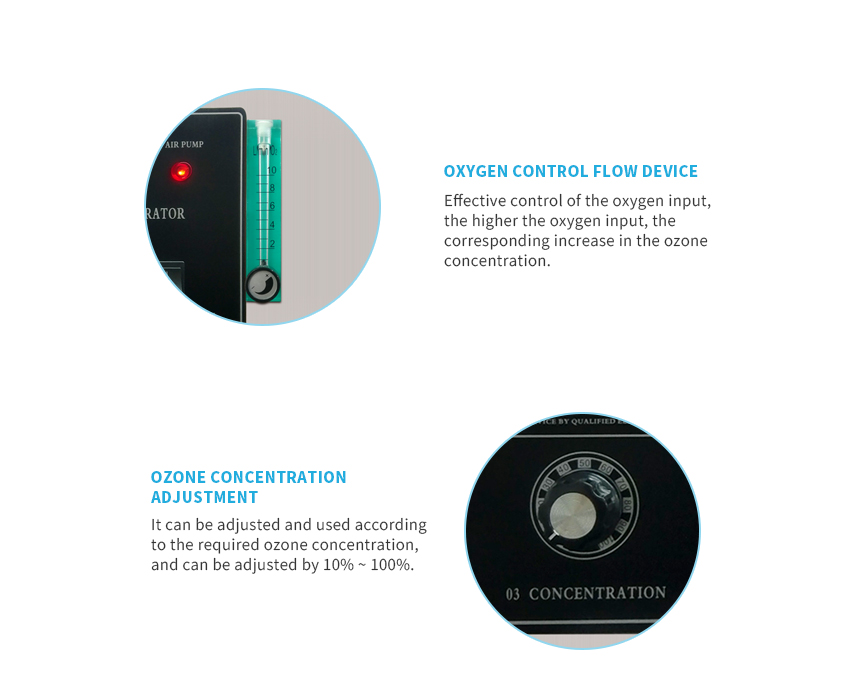

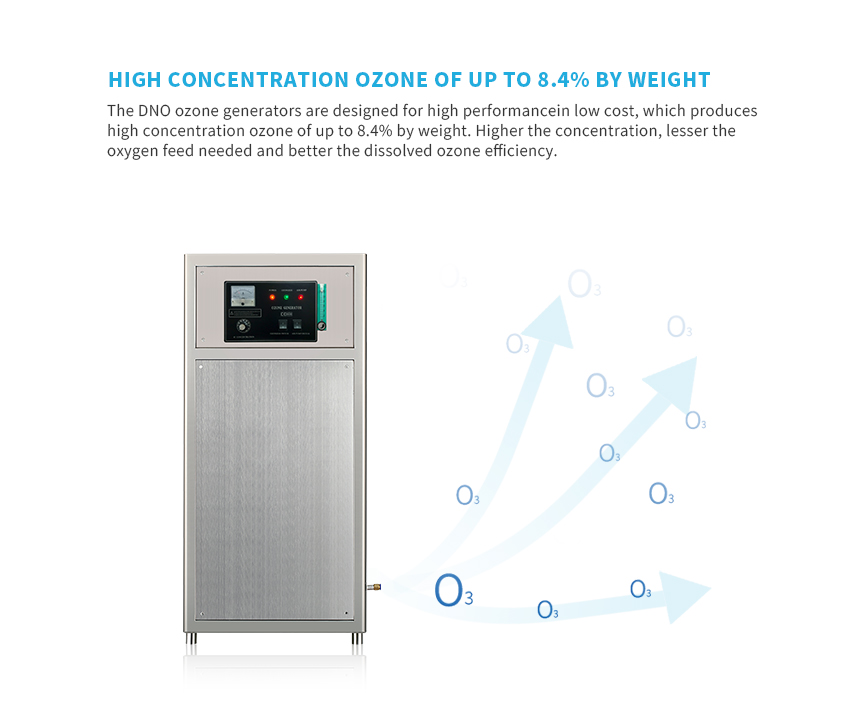

1. ozone concentration 4.1-9.5wt% by weight, adjustable ozone production

2. Back water prevented device, plug and play

3. Continuous operation, low operation & maintenance cost

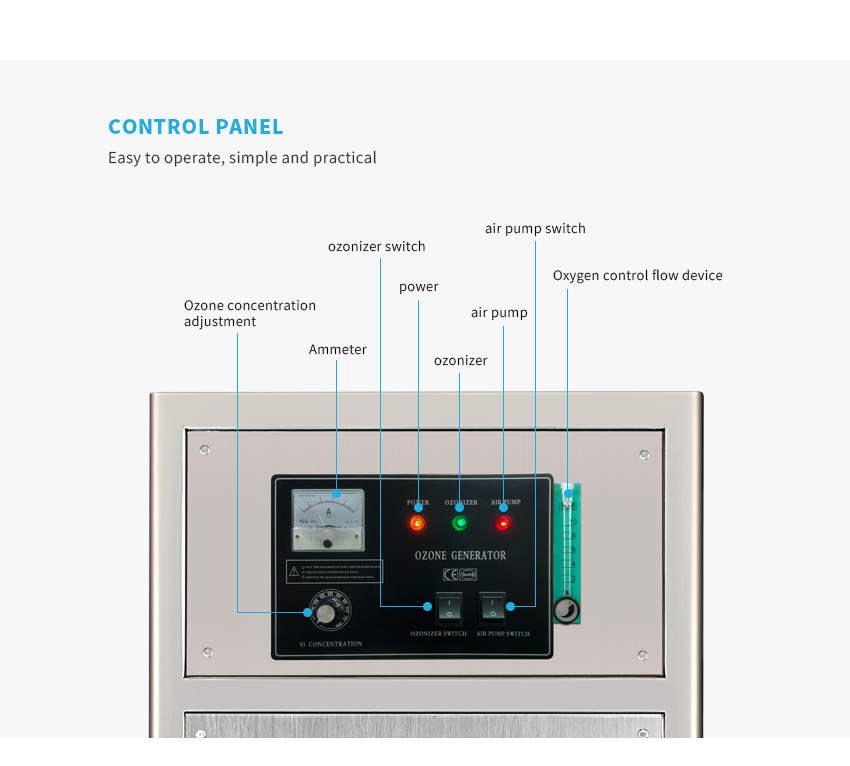

4. Imported PLC/HMI, Standard 4~20mA signal access port (optional)

APPLICATIONS

Water and wastewater treatment, agricultural irrigation, aquaculture, swimming pool, olive oil etc.,

SPECIFICATIONS

MODEL	MAX OZONE PRODUCTION		OZONE CONCENTRATION		OXYGEN CONSUMPTION			MAX POWER	COOLING	LENGTH x WIDTH x HEIGHT		WEIGHT
MODEL	g/hour	lbs/day	mg/l	%	l/min	m3/h	SCFH	W		cm	inches	kg	lbs
DNO-10G	10	0.5	58	4.1	3	0.2	6	600	Air Cooled	50x40x73	19.5×15.6×28.5	33.2	73.2
	7	0.4	59	4.1	2	0.1	4
	4	0.2	65	4.5	1	0.1	2
DNO-15G	15	0.8	79	5.5	3	0.2	6	670	Air Cooled	50x40x73	19.5×15.6×28.5	38.0	83.8
	10	0.5	81	5.7	2	0.1	4
	5	0.3	82	5.7	1	0.1	2
DNO-20G	20	1.1	70	4.9	5	0.3	11	850	Air Cooled	50x40x91	19.5×15.6×35.5	40.0	88.2
	15	0.8	82	5.7	3	0.2	6
	6	0.3	93	6.5	1	0.1	2
DNO-30G	30	1.6	86	6.0	6	0.4	13	900	Water Cooled	50x40x91	19.5×15.6×35.5	49.0	108
	25	1.3	105	7.3	4	0.2	9
	8	0.4	140	9.8	1	0.1	2
DNO-50G	50	2.6	86	6.0	10	0.6	21	940	Water Cooled	50x40x115	19.5×15.6×44.9	59.6	131.4
	49	2.6	103	7.2	8	0.5	17
	37	2	123	8.6	5	0.3	11
DNO-100G	100	5.3	85	5.9	20	1.2	43	2750	Water Cooled	60x50x138	23.4×19.5×54.3	114.0	251.3
	90	4.8	100	7.0	15	0.9	32
	58	3.1	122	8.5	8	0.5	17
